As water professionals, it's our duty to provide communities with safe, potable water by preventing the ever-present threat of backflow. Whether you're a beginner or a seasoned professional, stay up to date on the changing demands of our plumbing systems with resources developed by our backflow experts.

National Backflow Prevention Day
Thanks for making the second annual National Backflow Prevention Day a success! Join us next year on 8/16 to recognize backflow preventers and the professionals who install, test, and service them.



National Backflow Prevention Day banner logo

Sign-up to download free e-books about backflow prevention strategies

Featured Backflow Innovations

Deringer

Ames Deringer™

The smallest, lightest, and only all stainless steel backflow in the industry
Learn More

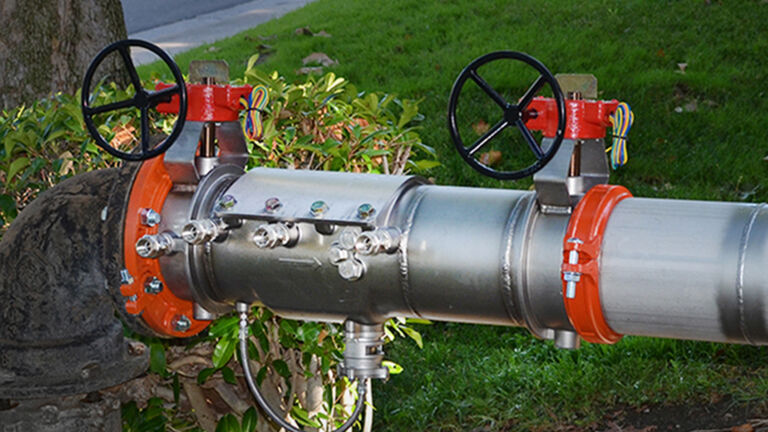

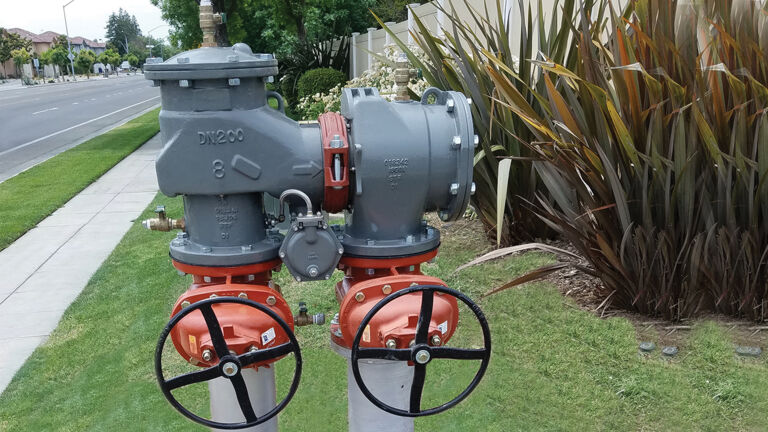

A master series backflow preventer

FEBCO MasterSeries®

The most versatile line of backflow prevention assemblies on the market
Learn More

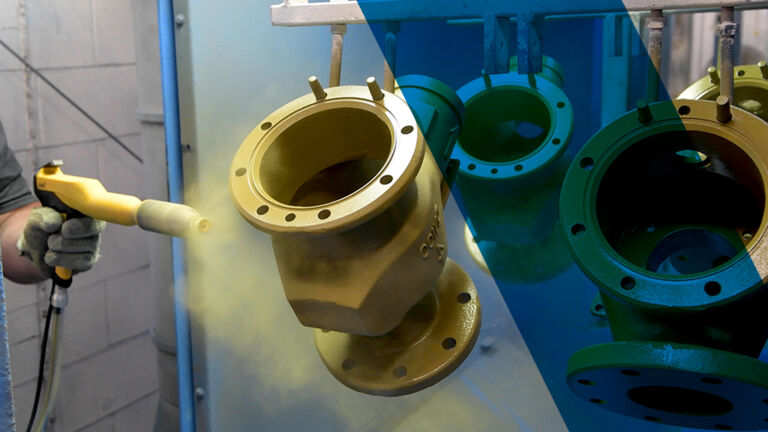

backflow part getting coated in armor Tek

ArmorTek™

Field-proven protection against microbial-induced corrosion (MIC)
Learn More

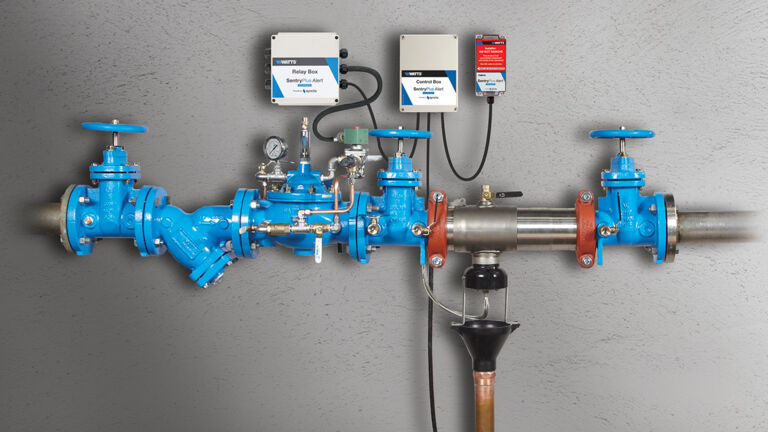

Backflow preventer with sentry plus installed

Watts SentryPlus Alert™

The first system that offers automated flood protection
Learn More
a backflow training module that is showing man who is working on a back flow preventer

Backflow Training

Catch up on best practices in backflow and water safety anytime, anywhere with eLearning courses designed to fit your busy schedule.

Watts Works Online

Examples of Backflow

Carousel_Incident-1FullScreen
Carousel_Incident-2

Palm Beach County Drinking Water

In 2012, the Palm Beach County Health Department issued a notice of violation against the city of Boca Raton for a host of long-standing problems with the city’s drinking water, including fecal matter. There were four major problems that needed to be addressed: inadequate cross-contamination safeguards to prevent wastewater from entering drinking water, an illegal chemical injection system, the reconnection of disinfected wells to city lines without adequate testing, and failure to tests for lead and copper in water lines.

Carousel_Incident-7

Clinic Suffers Backflow Contamination

A bitter taste and strong chemical odor in the water supply led a North Carolina clinic to contact the Wilson Water Distribution Division. Upon investigation, officials determined the source of the problem was a garden hose connected to a hose bibb that did not have a vacuum breaker in place. The garden hose had been used to add water to the clinic’s X-ray development chemical mixer. Submerging the garden hose in the chemical mixer without a vacuum breaker on the hose bibb created an indirect cross-connection, causing X-ray developer and fixer chemicals to enter the drinking water. City Water Distribution Division employees worked with a contractor to cut a section from the 8" diameter water main and replace a leaking tapping sleeve with a tee. Negative pressure had caused the chemicals in the mixer to be backsiphoned through the garden hose, contaminating the clinic’s water supply.

Carousel_Incident-9

Family Wins Lawsuit Over Drinking Water Connected to Sewer Line

A city employee discovered a cross-connection between water and sewer lines during a routine inspection of a Colorado family’s home. After the employee reported the issue, the county’s Water and Sanitation District shut off the family’s water supply. The District learned that a local water treatment company was installing water softeners in homes without the proper permits, notified the company it had 30 days to rectify the issue, and informed its customers of the discovery. The Colorado family then sued the water treatment company and won.

Carousel_Incident-10

Fire Foam Contaminates Water Supply

As firefighters worked to extinguish a burning warehouse in Pittsburgh, two pumper trucks connected to fire hydrants experienced backpressure backflow. The trucks’ lines overwhelmed drinking water lines, pushing fire-suppression foam into the local water system. Callers complained about soapy-looking water. The biodegradable foam can irritate skin and eyes, but does not pose a health threat when less than an ounce is ingested. The Pittsburgh Water and Sewer Authority advised people downtown and in the Strip District not to use water for several hours, until the foam could be flushed from the system.

Carousel_Incident-12

Pink Water in Louisiana

A homeowner in the village of Palmetto, Louisiana installed a water softener but failed to set up a backflow preventer, allowing chemicals to enter the water supply. As a result, the village’s water turned pink. Officials sent five samples from different water sources in the village to the Department of Health and Hospitals. They also ordered residents not to use their water supply, including for drinking, bathing, or cooking. Two containers filled with water were stationed at the village’s hall for residents to fill jugs, and the do-not-use water advisory persisted for two full days.

Carousel_Incident-6

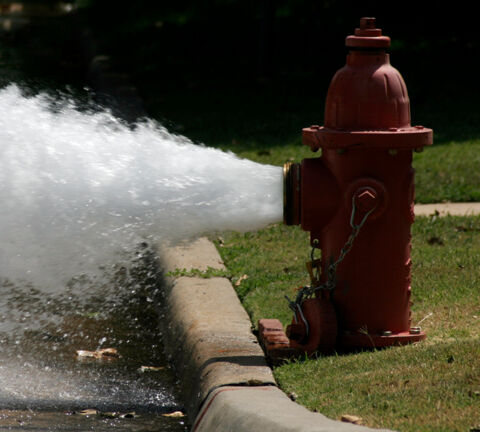

Contractor Error Causes Cross-Contamination

A private lawn maintenance contractor’s unauthorized use of a city hydrant resulted in cross-contamination of the city’s water system. The contractor failed to install a backflow device on the hose connected to the fire hydrant before filling a hydroseed tank with water. The tank’s contents, a product containing seed, dye, and wood pulp, entered the city water system. Clogs at the local school prevented the flow of water. The Water Department flushed the lines in order to contain and draw out the seed, and the city’s residents received a two-day drinking water advisory.

Carousel_Incident-15

Backflow Incident with Louisiana Swimming Pool

A Liddieville, Louisiana family’s improper filling of their pool caused cross contamination of the home’s water system. After two children fell ill with bacteriological infections, their mother called the Louisiana Department of Health and Human Services to request a test of their water. Department representatives asked the resident if she had a swimming pool, and, when she said yes, inquired how she filled the pool. She reported filling it with a garden hose and affirmed she left the hose in the pool and had previously noticed it siphoning water. When the official asked about her chlorination system, she said she did not consistently operate it. The Department of Health identified these actions as the source of the problem and advised her to use an air gap when filling the pool, because her current methods could contaminate the distribution system. The Liddieville Water System initiated a flush, issued a boil-water advisory to all 441 connections in Franklin Parish, and started a program to alert customers about the problems with cross-connection.

Icon-connect-repair
  • Icon-connect-repair
  • Carousel_Incident-2
  • Carousel_Incident-7
  • Carousel_Incident-9
  • Carousel_Incident-10
  • Carousel_Incident-12
  • Carousel_Incident-6
  • Carousel_Incident-15

Our Backflow Brands

Optimize safety, durability, and compliance with Watts’ complete line of backflow prevention devices. As a leader in valve technology for over 130 years, we offer a variety of high-quality backflow prevention solutions from the Watts family of brands
Watts logo

View All Products
Ames logo

View All Products
FEBCO logo

View All Products
Syncta

View Our Backflow Testing Solution

Backflow Resources

Manual

Specification Sheets

Find the right specification sheet to better understand your backflow device.

Learn More

Backflow Basics

Child drinking water from a glass at a table

What is Backflow?

Backflow describes the undesirable reversal of the flow of water from its intended direction in any pipeline or plumbing system. Caused by cross-connections that can potentially allow contaminants into the drinking water system, backflow incidents occur when wastewater or other hazardous materials enter a potable water supply.
Two Type Backflow

Two Types of Backflow

The two types of backflow are known as backpressure and backsiphonage. Backpressure is defined as pressure higher than the supply pressure, caused by a pump, elevated tank, boiler, or any other means that may cause backflow. Backsiphonage describes backflow caused by negative or reduced pressure in the supply piping, often caused by a sudden drop in supply pressure.

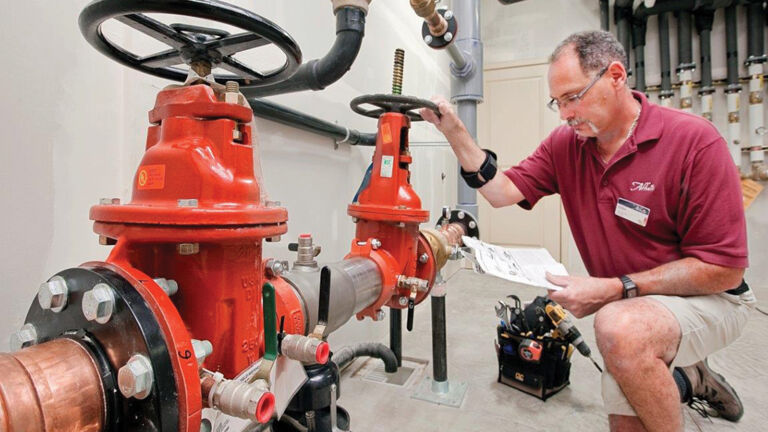

A man checking on a backflow preventer

How Can Backflow Be Prevented?

Backflow prevention isn't just critical – it's mandated. All major plumbing code bodies address protection against backflow. Plumbing professionals ensure our communities are safe from the dangers of backflow by identifying cross-connections, specifying and installing the appropriate backflow preventers, and inspecting them to ensure they operate correctly and are up to code.
