R12
Light Commercial Reverse Osmosis Water Purification System

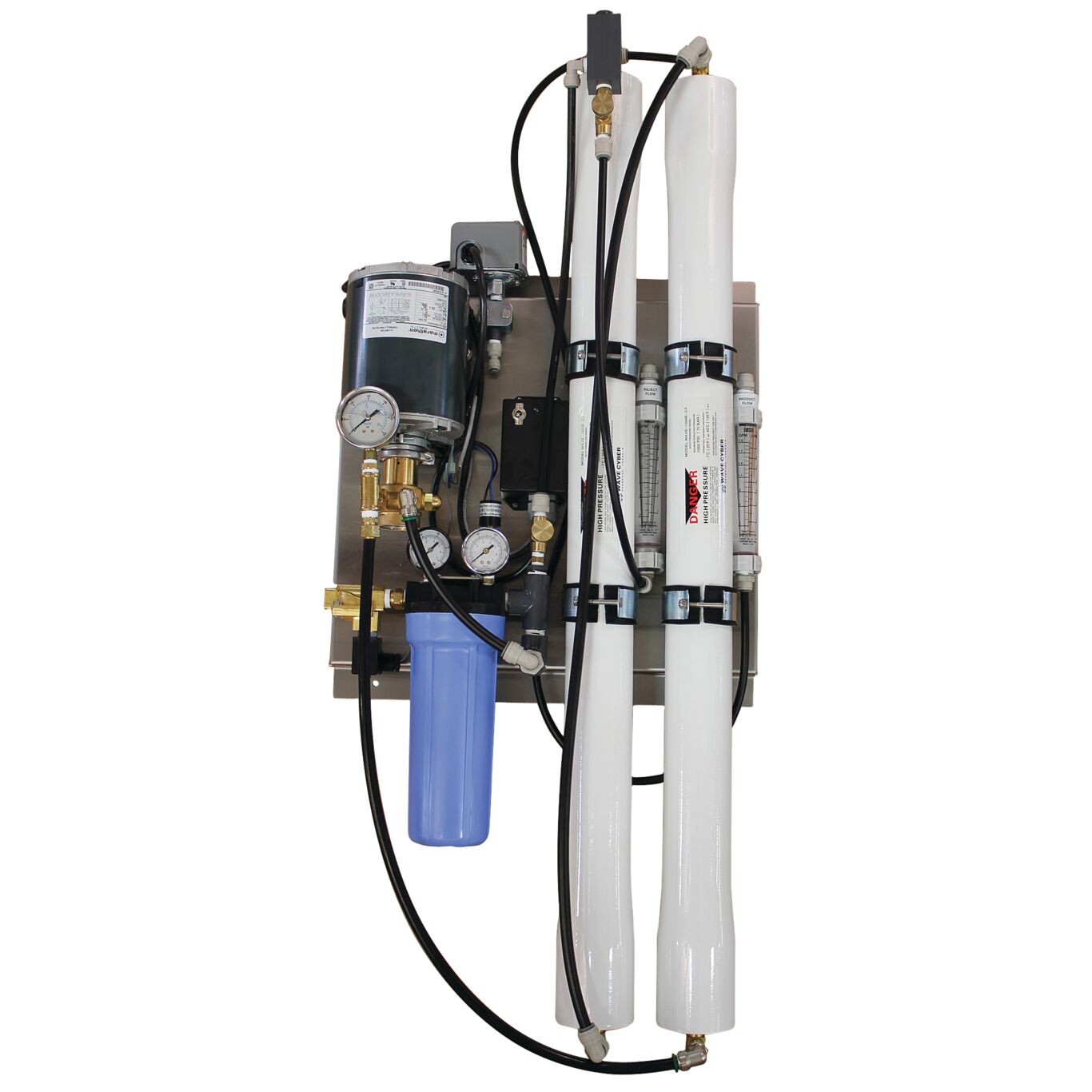

Watts Series R12 reverse osmosis (RO) systems are commercial grade high-pressure RO units for the reduction of total dissolved solids from water. They are designed to supply reverse osmosis quality water with production rates ranging from 150 to 1,200 gallons per day. The standard units are designed for wall mounting. Where floor mounting is preferred, the optional floor mounting kit Model No. R2864 can be specified. Reverse osmosis is a process where high-pressure feed water is fed into a semi-permeable membrane. In the membrane, pure water is allowed to pass through the membrane material and exit as purified permeate water. Dissolved mineral salts are not allowed to pass through the membrane and become a concentrated reject stream that is sent to a drain. These RO systems use high-rejection membranes to achieve a minimum average NaCl ionic rejection of 95 percent.
- Commercial reverse osmosis systems that provide permeate rates up to 1,200 gallons per day (4,542 lpd)
- Low-pressure shut-off with auto restart
- Stainless steel wall mount frame
- Fiberglass reinforced plastic 300 psi high-pressure membrane housings
- High-pressure/high-rejection membranes with 95% minimum average salt rejection
- Permeate pressure switch and check valve
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific R12
