W-M110-14

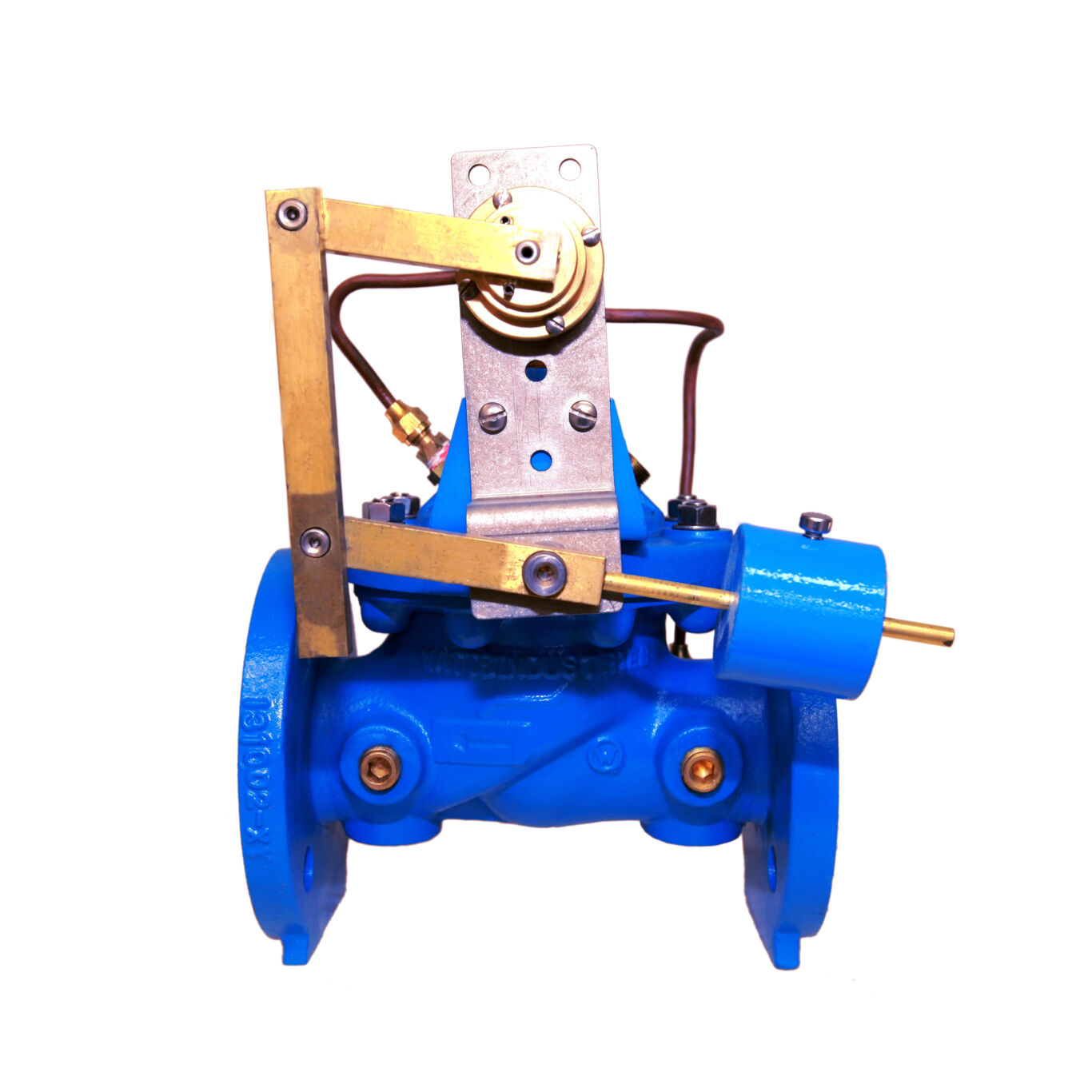

High-dropout Remote Control Float Ball Valve
Function: The high-dropout remote control float ball valve is composed of the main valve of a hydraulic control valve and a high-dropout float ball control valve whose stroke can be adjusted, and an accelerator is added to the main valve with the diameter above DN150 to accelerate the opening or closing of the main valve. The high-dropout remote control float ball valve features a large liquid level control range. Controlled by the highest point and the lowest point on the float ball rod, the frequency of opening and closing of the main valve can be reduced to extend the service life of the main valve. The float ball control valve can be mounted together with the main valve or remotely mounted. Application Area: Water supply tanks, sinks or water tanks for industrial enterprises and residential buildings Test
- The opening or closing speed of the main valve can be adjusted through the needle valve
- The liquid level control range is large, controlled by the highest point and the lowest point on the float rod, which can reduce the frequency of the opening and closing of the main valve and prolong the service life of the main valve
- Control the opening and closing of the main valve through the float valve to ensure that the water level always remains at the preset height
- Compact structure, reliable sealing; simple structure and easy maintenance
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific W-M110-14
