M5 Actuator
×

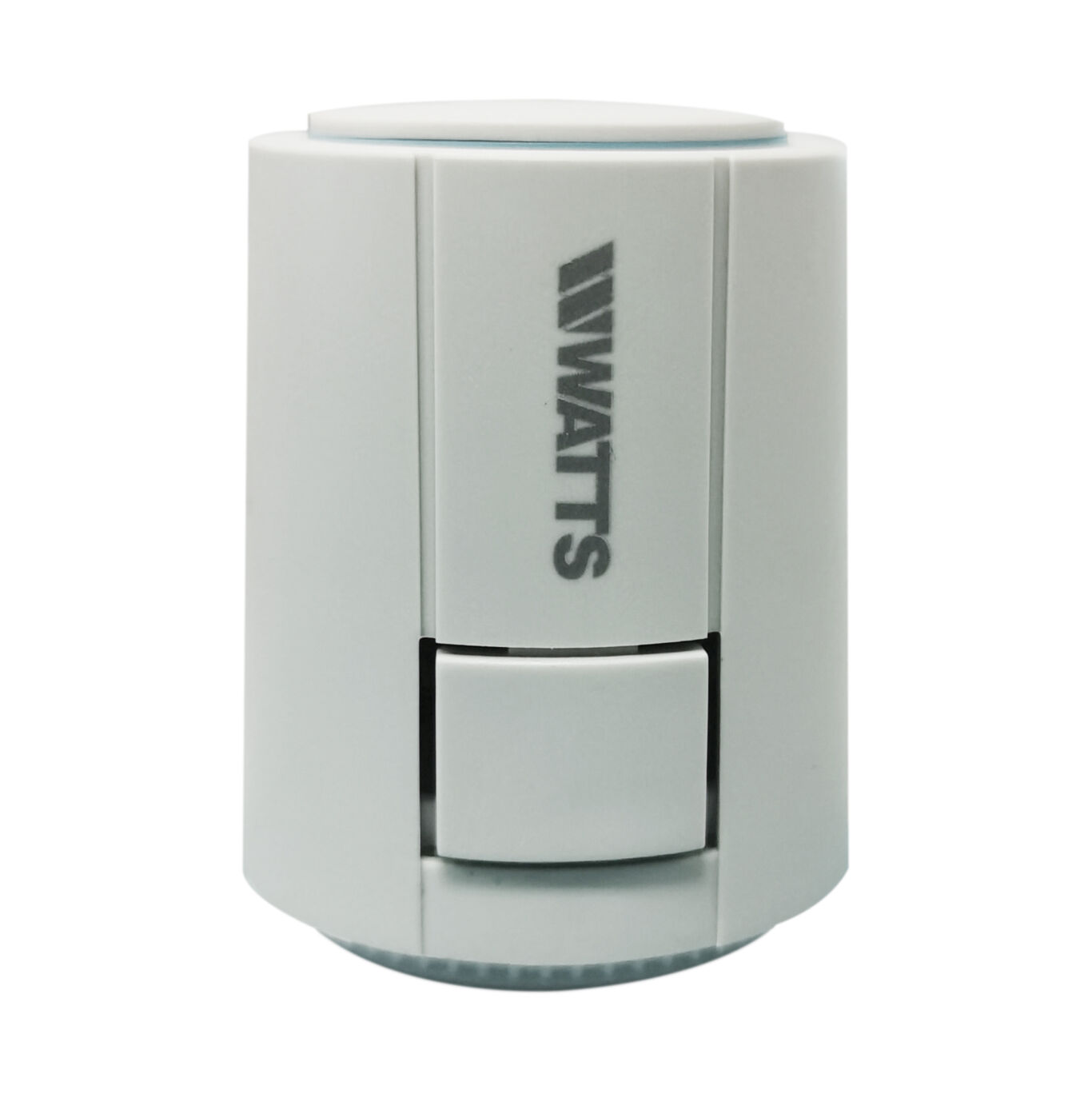

Electrothermic Actuator

Electrothermic actuator, compact design with on/off action, compatible with regulation valves used on Watts manifolds. Available in NC (normally closed) version. 2-pole x 0,75 mm2 electrical cable, 80 cm length.


  • Valve adaption: M30 x 1.5 threaded ring nut.
  • Power consumption: 1,9W (230V)
  • Protection class: IP54
  • Actuator stroke: 4 mm
  • Version 230V: 60 sec. (start).- 4 min. (end)
  • Valve connection: M30 x 1.5
