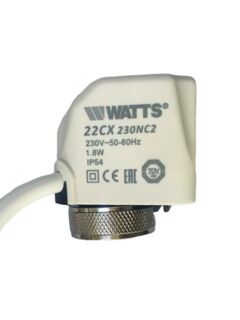

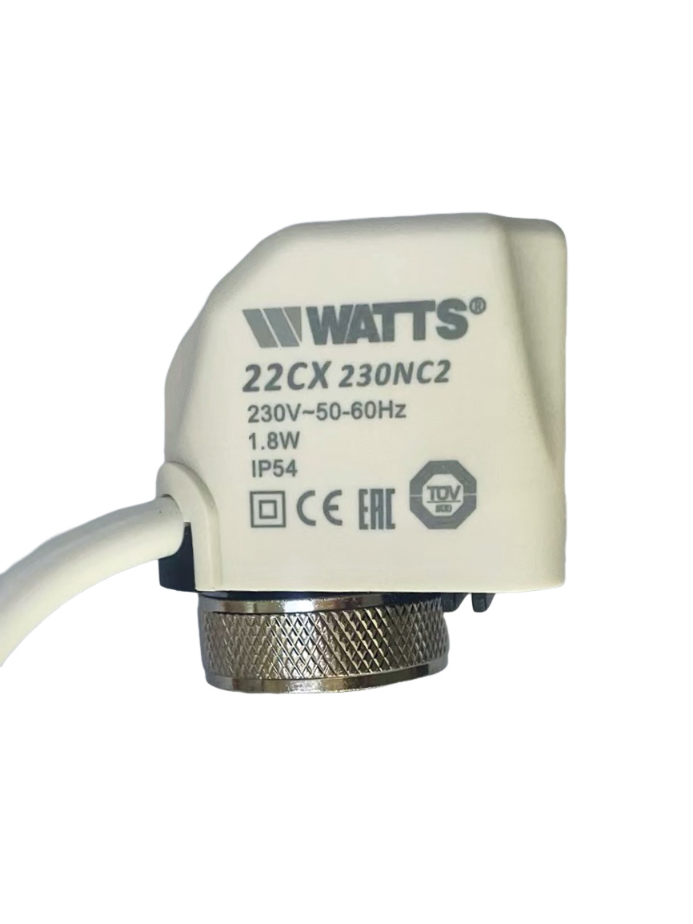

22CX
×
![]()
Electrothermic actuator
The electrothermic actuators 22CX Series are ON/OFF devices used for automatic actuation of the valves on thermostatic adaptable valves, fan coil valves, manifolds. The electrothermic actuators are available in the following versions:
- 2-wire or 4-wire (with auxiliary microswitch), both easy to fix on the valve body with a M30x1.5 threaded ring nut
- TUV approved
- Power consumption: 1,8W
- Protection class: IP54
- Actuator stroke: 3.5 mm
- Valve connection: M30 x 1.5
