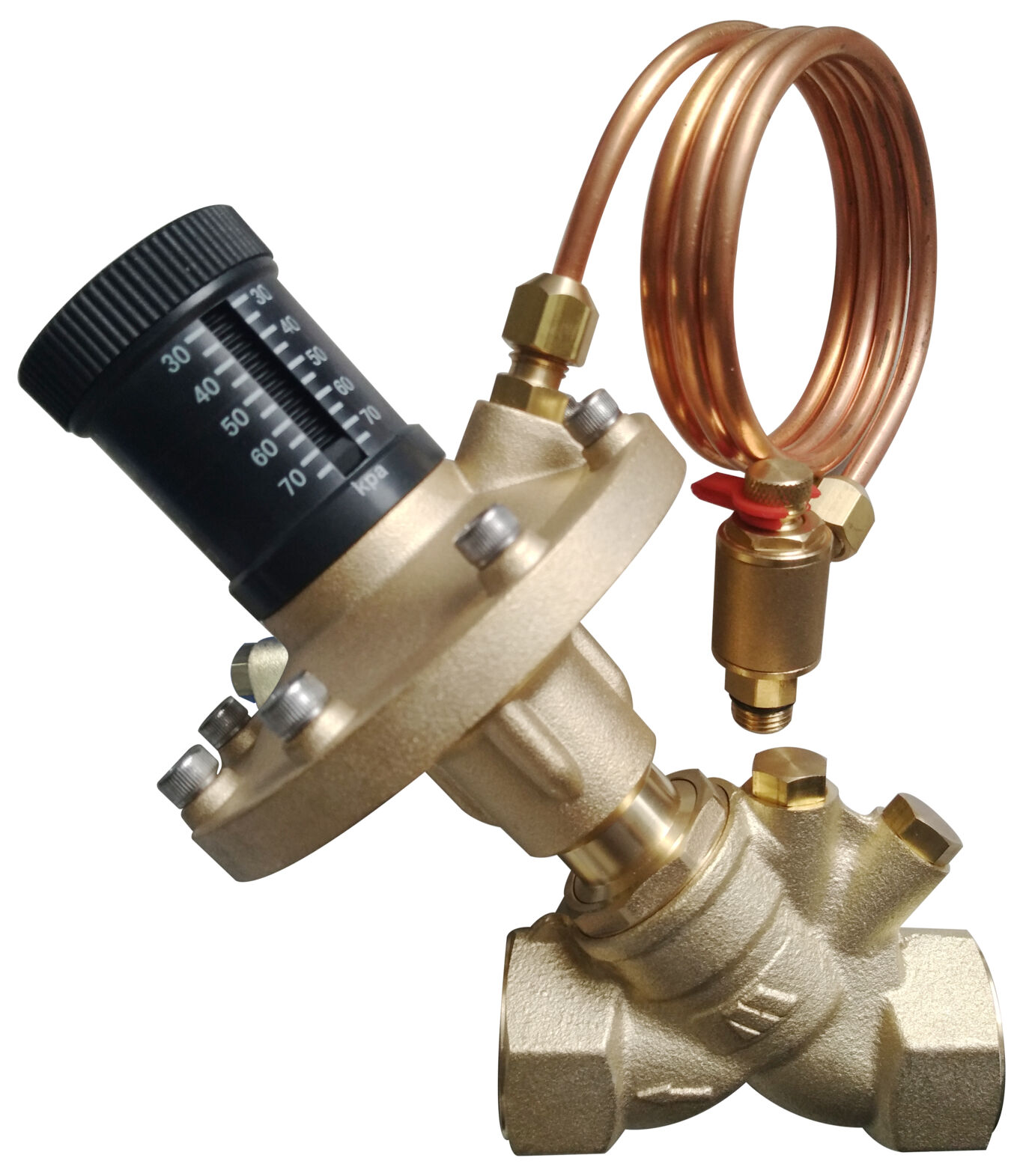

Series W-DPBV-20T
×
![]()
Differential Pressure Balancing Valve
The Series W-DPBV differential pressure-balancing valve is designed to keep constant differential pressure between supply pipes and return pipes of a bypass, control valve or terminal equipment in air-conditioning or heating system. It avoids hydraulic disturbances resulting from variations in system differential pressure.
- Self-acting differential pressure control, no external power needed
- The on-site setting of differential pressure
- Wide controllable range of differential pressure
- Handwheel equipped with differential pressure indicator
- Able to be shut off by handwheel
- Self-sealing measuring points to protect against leakage
- Equipped with measuring points and air vent
- Equipped with a three-way measuring connector
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Series W-DPBV-20T
