MSL
×
![]()

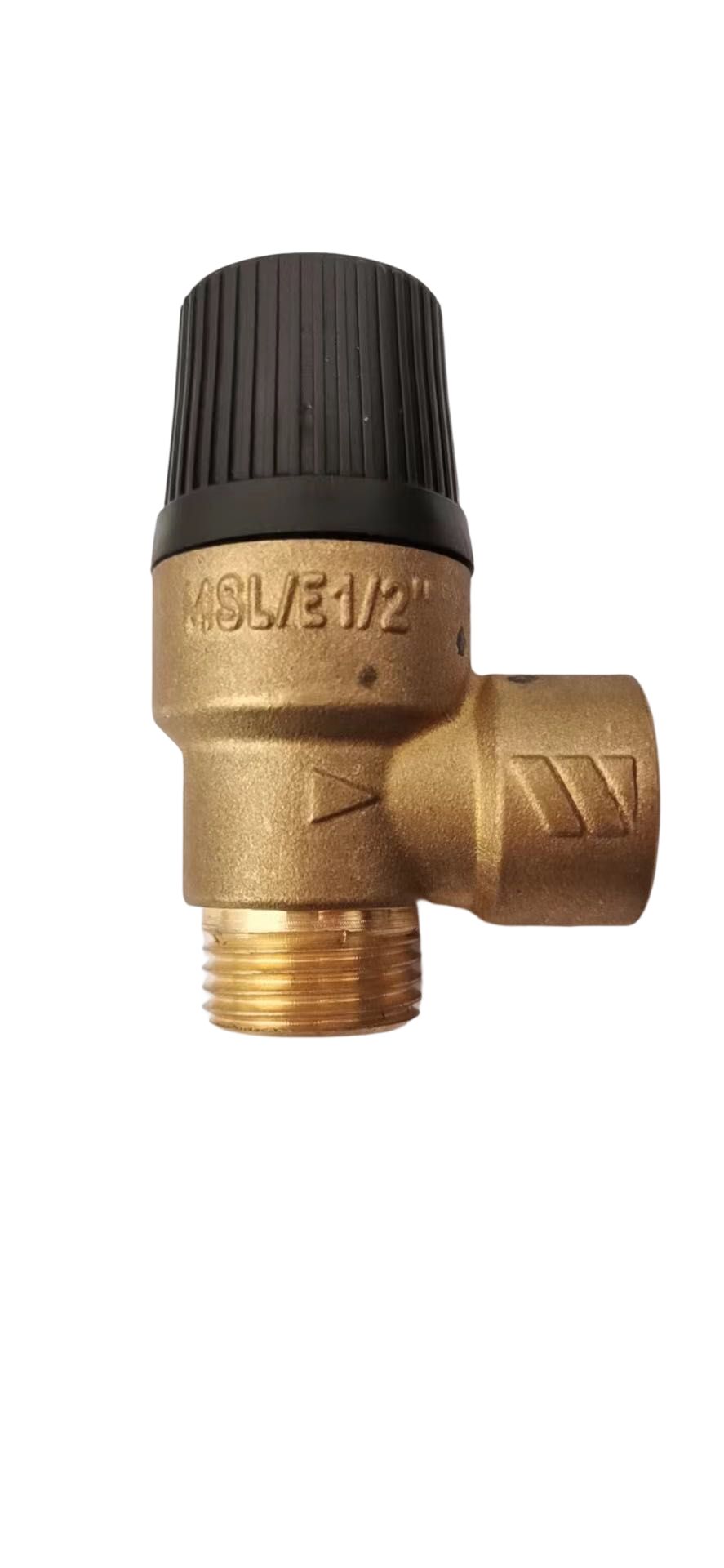

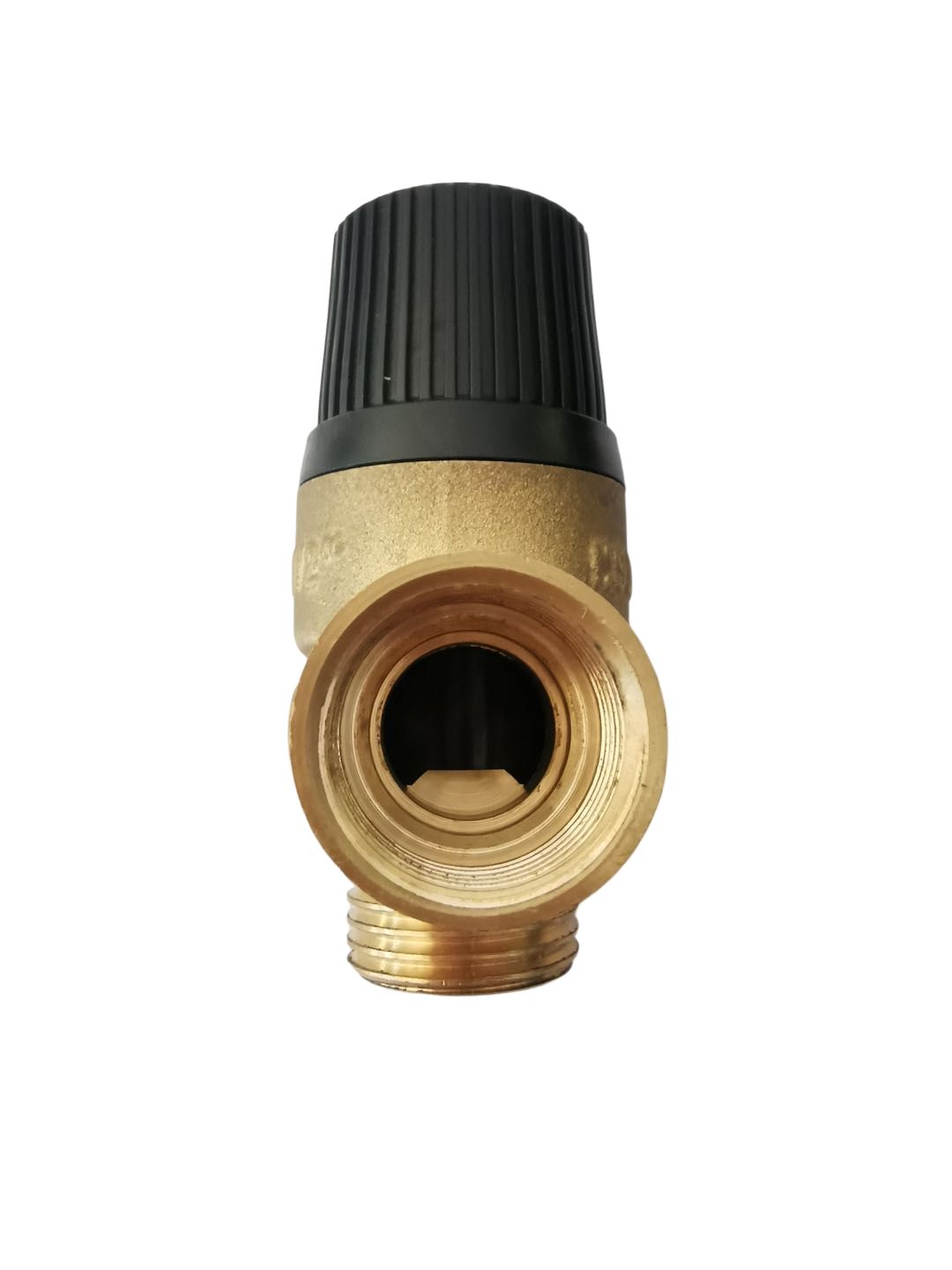

Diaphragm Safety Valve
Diaphragm safety valve. 1/2” MF connections.
CW617N brass body. Technopolymer manual discharge knob. Ni-Cr steel spring. Fluids: water with glycol ≤50%. Operating temperature: -10 to 110°C.
Reach, RoHS approved.
Compliant with PED 2014/68/EU identification number CE1282.
Available Models
· MSL
- Suitable for water with glycol up to 50%
- Operating temperature : -10°C~ 110°C
- 1/2” M/F connections
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific MSL
